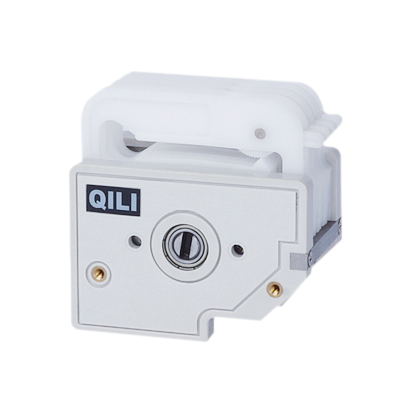

DG series pump head

The pump head is designed for small flow and multi-channel fluid delivery. It is easy to replace and fix the hose. The pressure tube gap can be slightly adjusted to adapt to different wall thickness hoses.

Flow range：Single channel: 0.002-48ml/min

Maximum number of channels：

Introduction

Parameter

Guide

video

The pump head is designed for small flow and multi-channel fluid delivery. It is easy to replace and fix the hose. The pressure tube gap can be slightly adjusted to adapt to different wall thickness hoses.

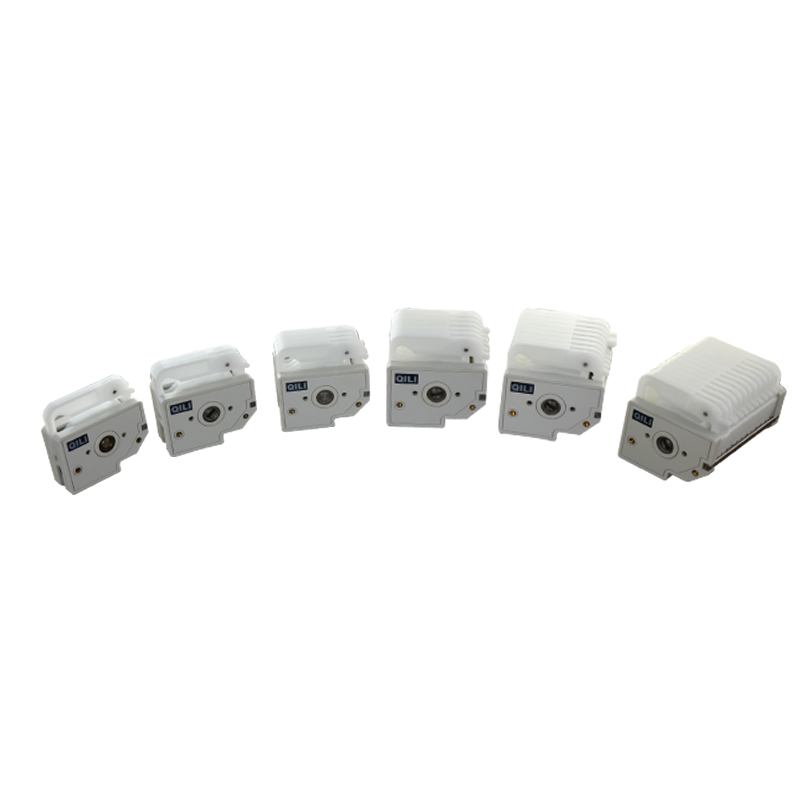

model

DG-1

DG-2

DG-4

DG-6

DG-8

DG-12

Number of channels

1

2

4

6

8

12

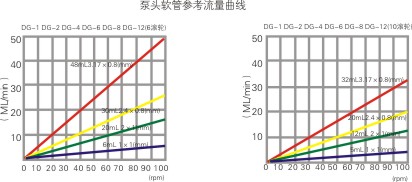

Flow range
(mL /min)

6Scroll wheel

0.002～48（Single channel）

10Scroll wheel

0.0025～32（Single channel）

Applicable hose(mm)

the inside diameter of≤3.17mm Wall thickness0.8～1mm

Card material

POM

Roller material

SS

weight(kg)

6Scroll wheel

0.23

0.3

0.48

0.66

0.83

1.18

10Scroll wheel

0.23

0.3

0.46

0.63

0.79

1.12
