It can provide a maximum flow of 2280ml/min (≤600rpm), easy to install, and suitable for small flow liquid transportation in various environments with low precision. Driven by AC geared motor or DC geared motor, with large torque, YZ1515, YZ2515, DG series pump heads can be installed.
With fixed speed, the motor can be selected according to user requirements.
| OEM01 technical indicators | |
| range of rotation: | ≤600rpm, fixed speed, optional. |
| motor: | AC geared motor or DC geared motor |
| Applicable power supply: | AC 220V, DC 12V/24V can be equipped with a speed regulator. |
| Applicable environment: | Temperature 0-40℃, humidity <80% |
| model | Pump head | Applicable hose | Reference flow range (ml/min) |

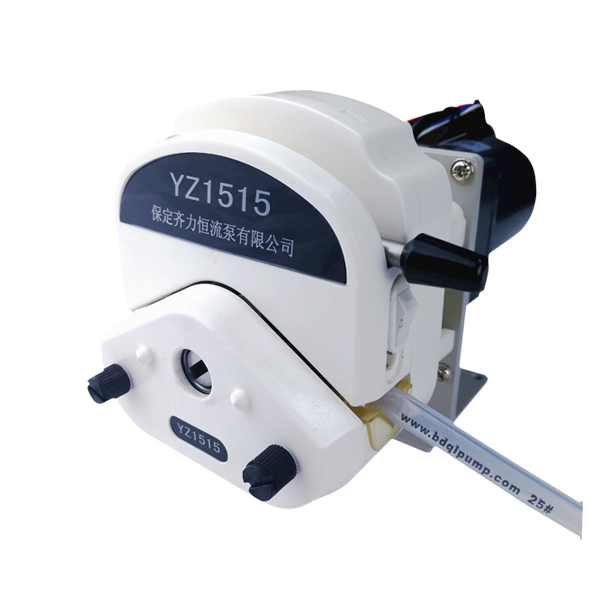

| OEM01 | YZ1515 | 13#14#19#16#25#17#18# | ≤2280 |
| YZ2515 | 15#24# | ≤1740 | |

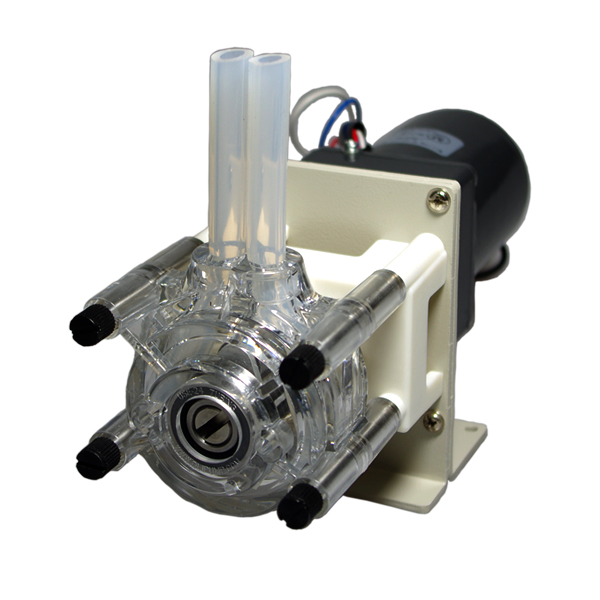

| DG series |
Wall thickness≤1mm Inner diameter≤3.17mm |
≤48 |
